Emtron Australia Pty Ltd

ELC2M

Name: ELC2M
Brand: Emtron Australia Pty Ltd
SKU: 5123-213
Price: 1245.0 AUD
Availability: OutOfStock

SKU 5123-213

$1,245.00 AUD

Sale Sold out

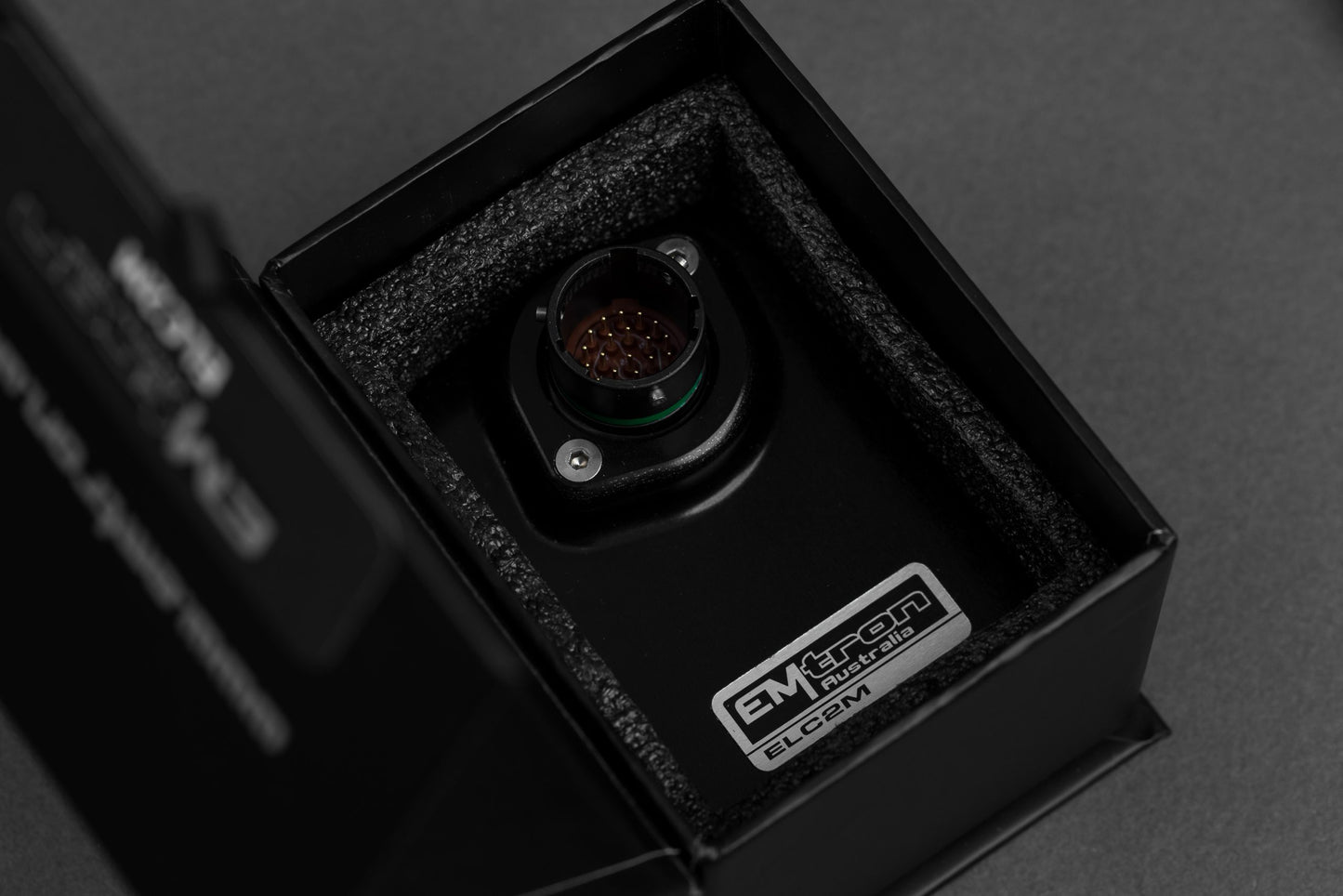

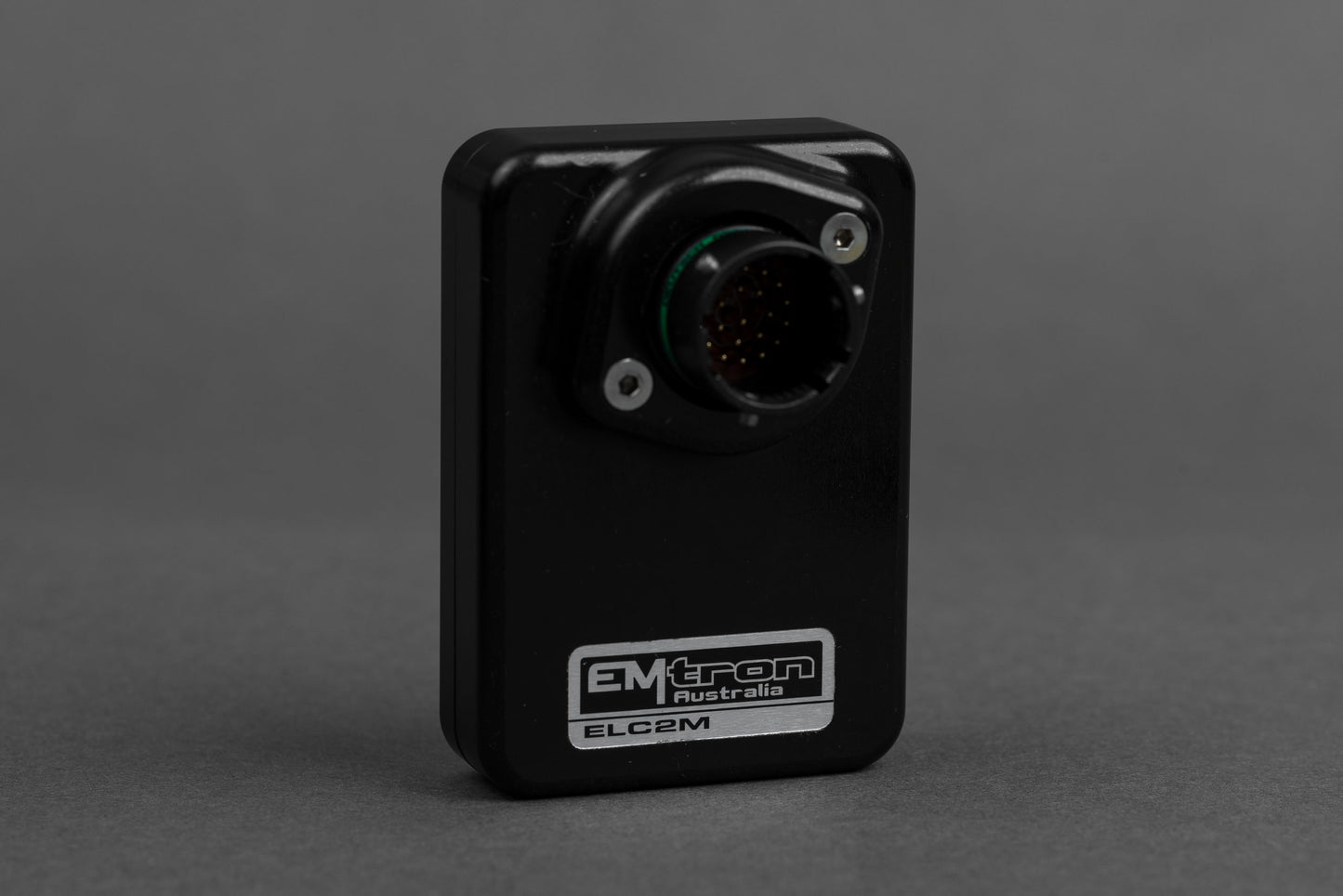

The ELC2M is a 2 channel LSU4.9 Sensor Lambda Control device compatible with all Emtron ECU’s. Bosch Integrated circuit technology is used for sensor control, Nernst Cell temperature measurement and PID algorithm for precise heater control. The device is connected via CAN bus and will be automatically detected which will significantly minimize configuration time. The enclosure is made from billet 6061 aluminium and is water proof to allow for implementation in extreme environments. Installation is made simple through use of a Motorsport proven Deutsch Autosport connector system.

Product variants

Quantity

View full details

Sensor type
Power supply
Internal
Operating Temperature

Bosch LSU4.9. Supports Single or Dual Channel

Operating Voltage: 7.0 to 22.0 Volts DC
Operating Average Current: 3A at 14.0V
Operating Peak Current: 8A at 14.0V during sensor warm-up
Reverse Battery Protection

64MHz 16-bit Automotive Processor
Resolution: 0.001 Lambda
Range: 0.580 Lambda to open air.
Signal sampling rate: 100 Hz
EMAP Pump Current Compensation

Operating Temperature Range: -30 to 85°C (-22 to 185°F)
