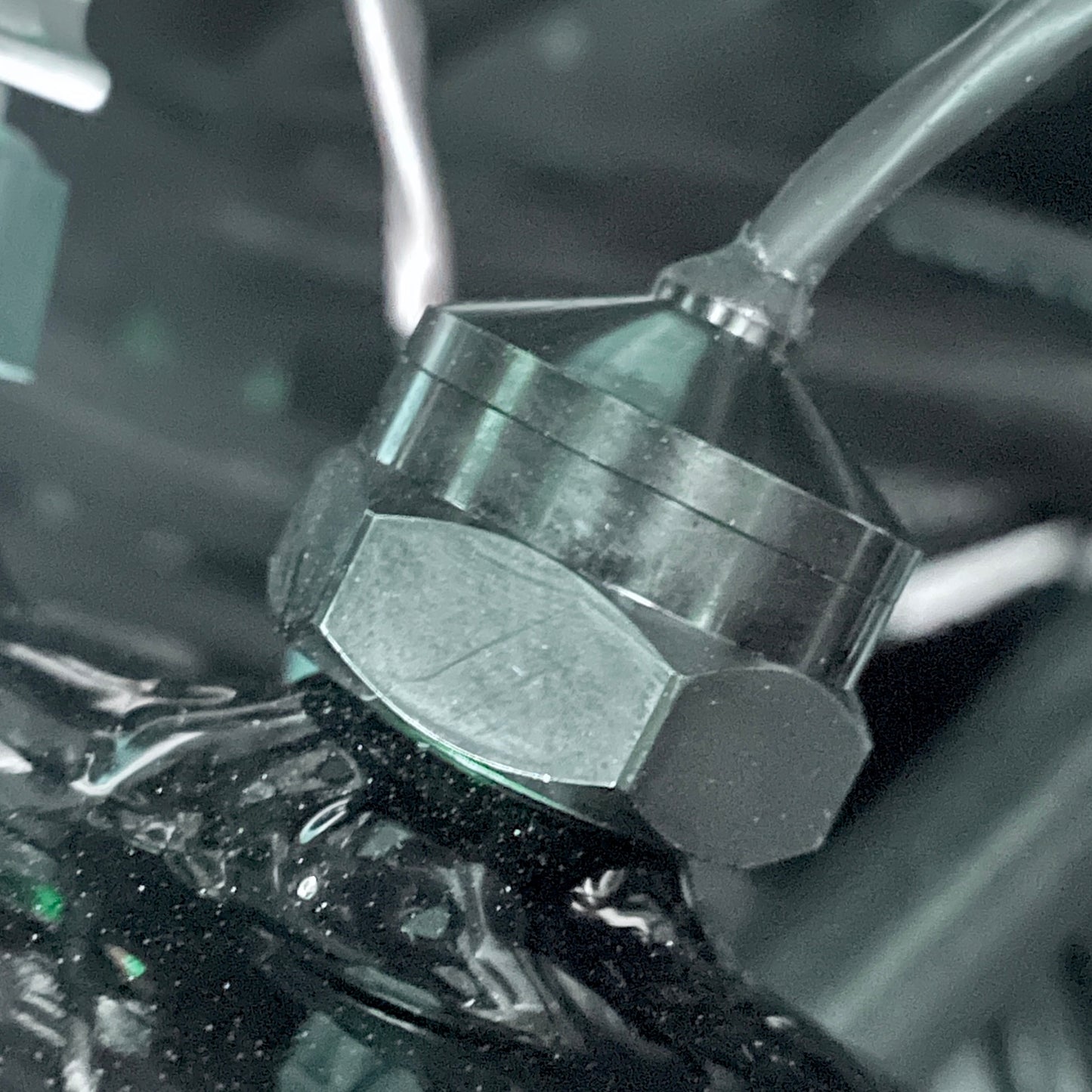

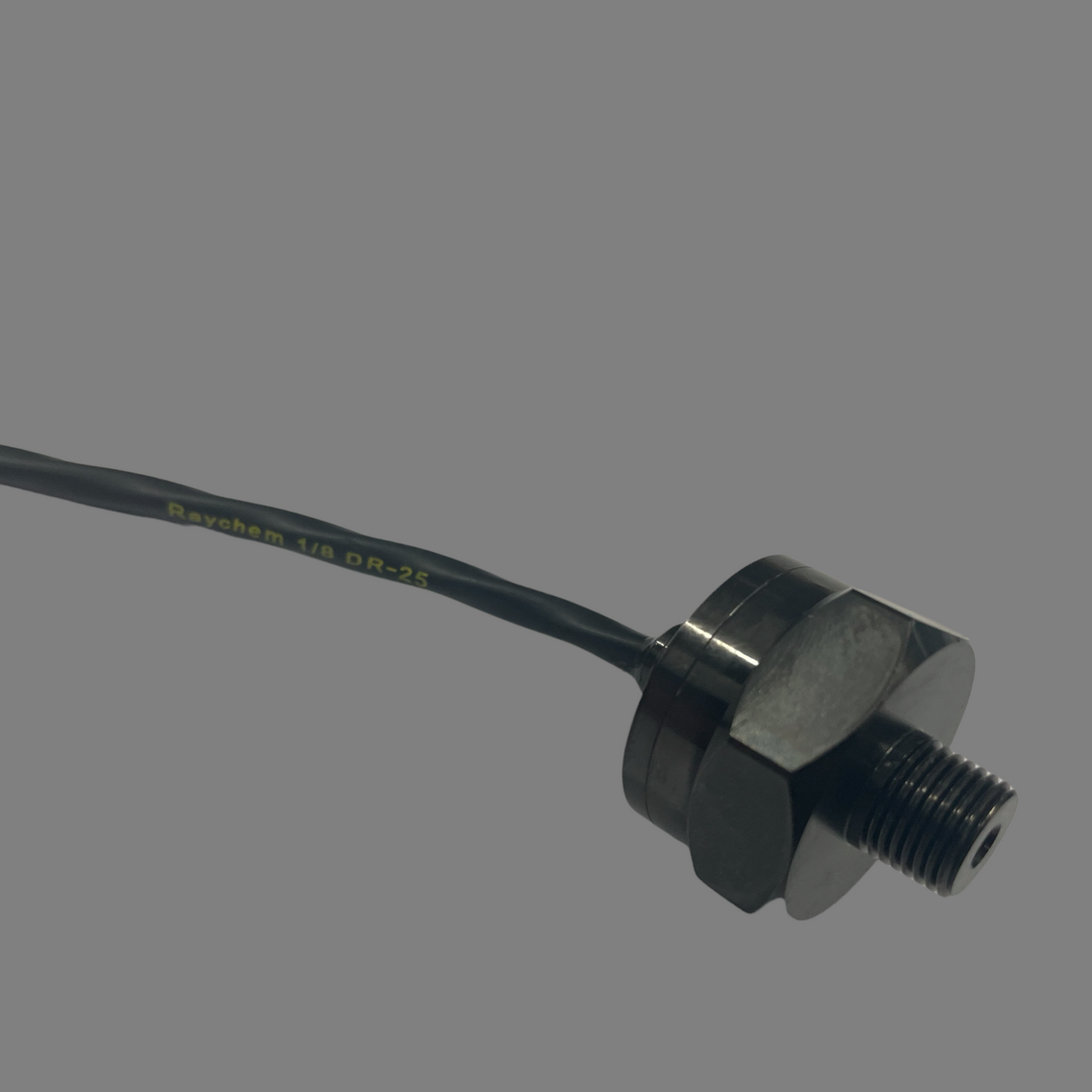

Emtron 300psi Pressure Sensor

The Emtron 300psi Gauge Pressure Sensor uses a state-of-the-art piezoresistive transducer from Bourns Semiconductors. It is highly accurate, providing a high level analog output signal that is proportional to the applied pressure.

• Genuine Bourns BPX130 series sensor
• Pressure Range: 0kPa to 2068.4kPa
• Supply Voltage: 4.50 to 5.50 Volts DC
• Current Supply 10.0mA
• Compatible with harsh media – air, water, oil, petrol and methanol.
• Fully calibrated and temperature compensated from -40 DegC to +150 DegC
• Response time 1ms
• Compact Design
• Stainless Steel 303 body for durability then coated in black nickel for superior abrasion resistance
• Fully potted for a waterproof seal and resistance to shock and vibration
• 1/8 NPT Thread

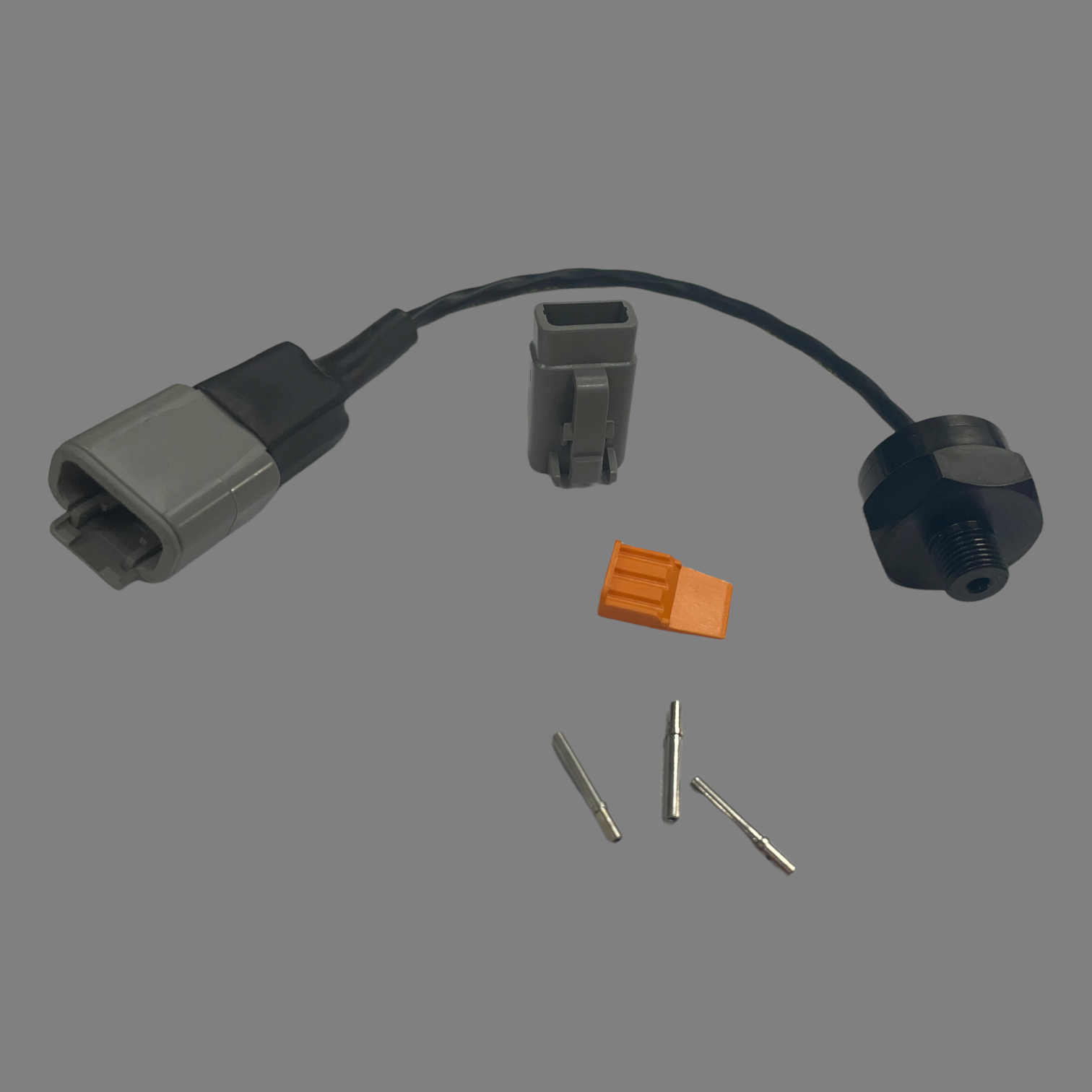

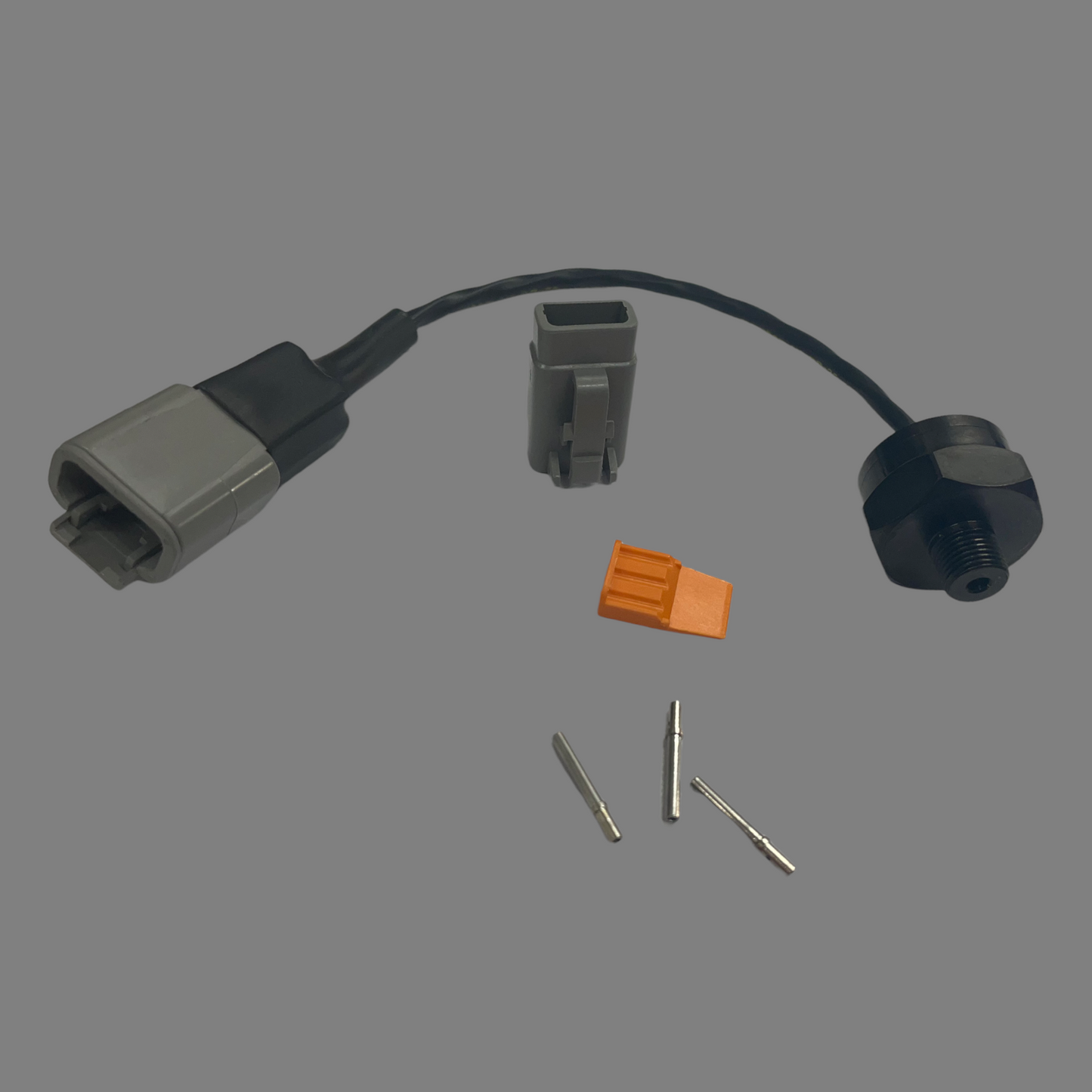

• Deutsch 3 Way Connector (mating end also supplied)

https://emtron.world/pressure-sensor-300psig-datasheet-emtron-2-3/
