Emtron Australia Pty Ltd

ETC8M

ETC8M

SKU 5203-813
$1,245.00 AUD
$1,245.00 AUD
Sale Coming Soon

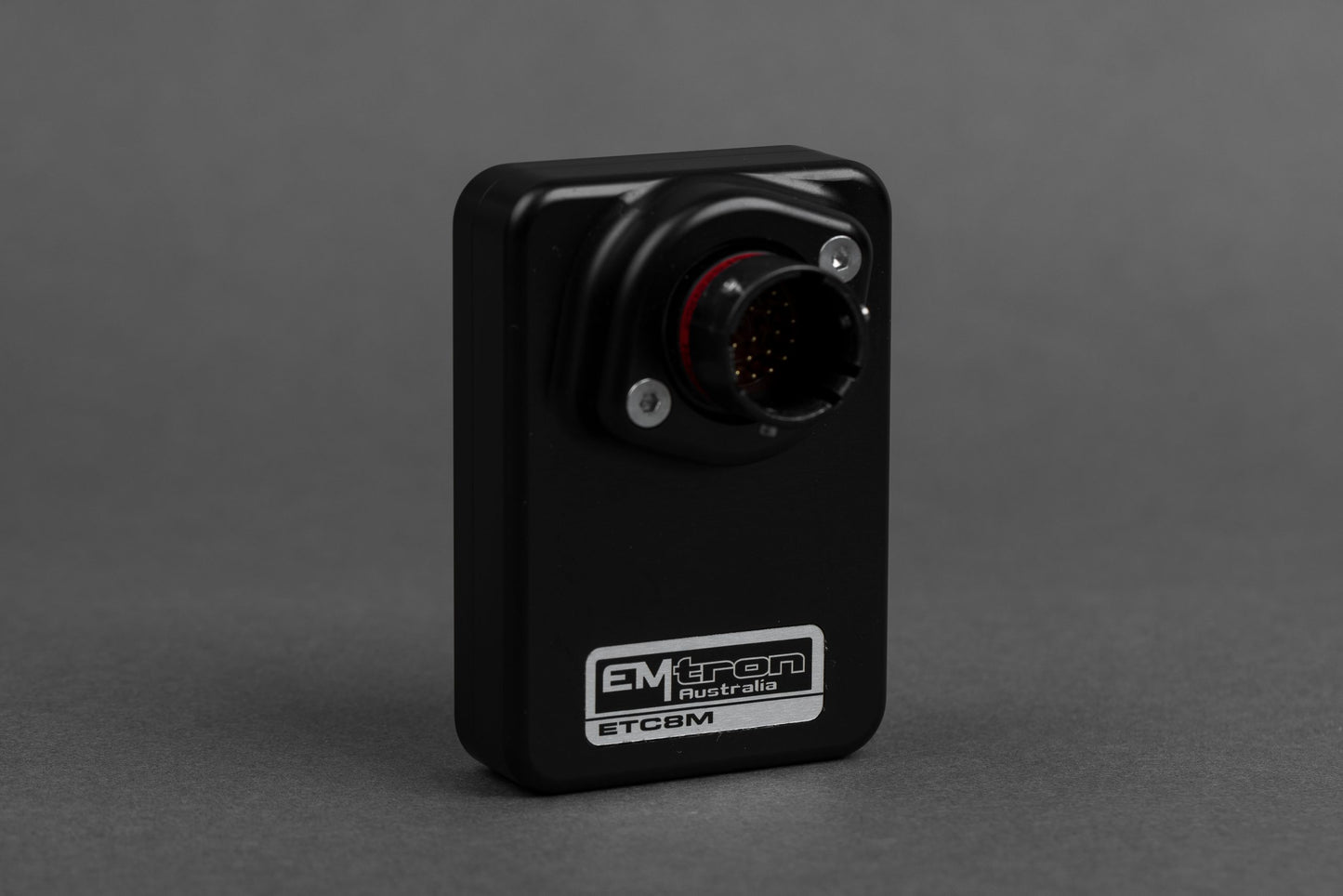

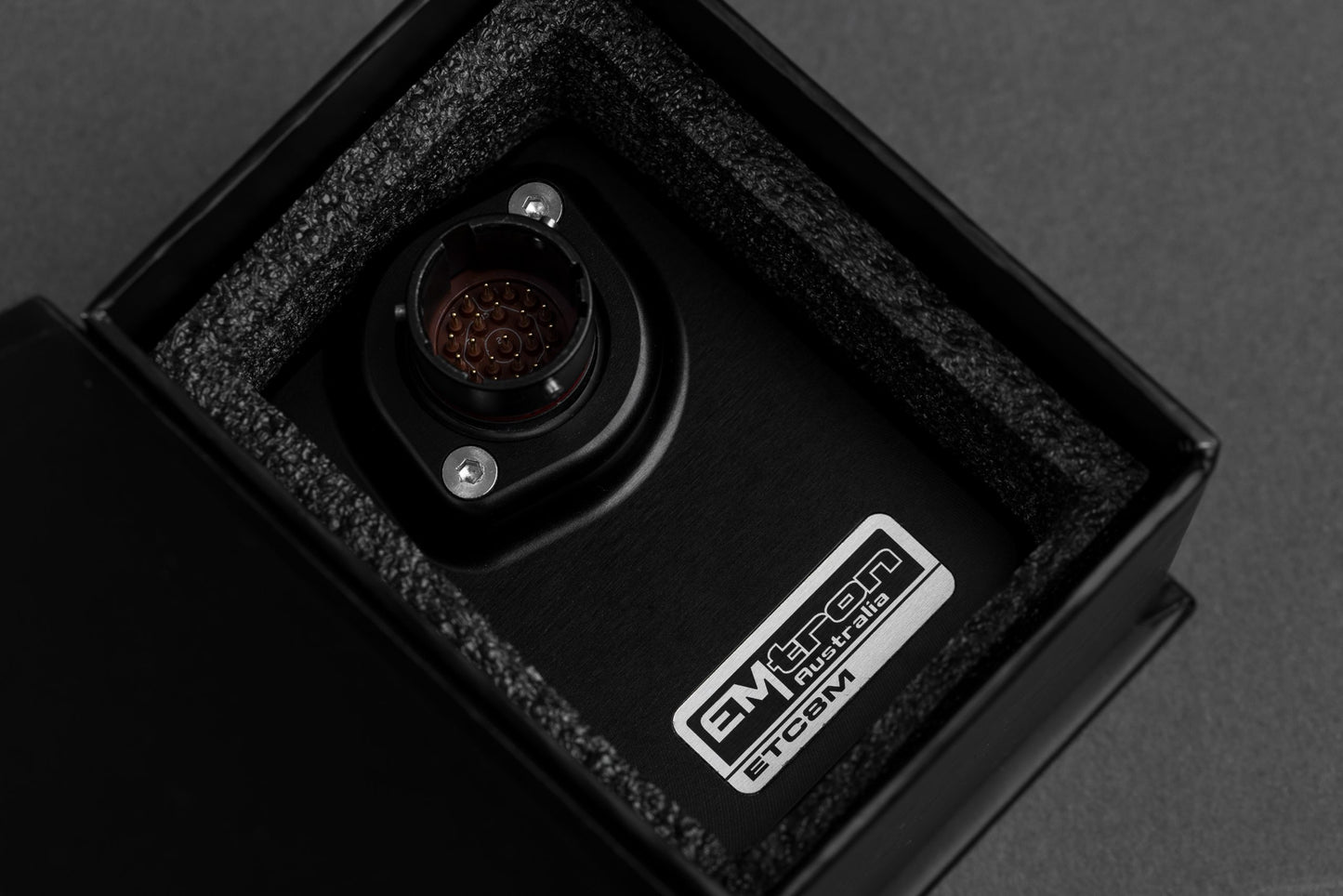

The ETC8M is a Mil Spec 8 Channel Thermocouple to CAN device using the Motorsport proven Deutsch Autosport connector (Red).

The enclosure is made from billet 6061 aluminium for use in extreme environments.
View full details
  • -200 to 1350 DegC
  • Sampling rate 500 Hz
  • Internal or External Cold Junction Correction
  • CAN Baud Rate: 250kBaud, 500kBaud or 1Mbaud Auto Detect
  • CAN Transmit Rate Adjustable: 100Hz/200Hz/500 Hz
  • Operating Voltage: 7.0 to 22.0 Volts DC
  • Operating Current 50mA at 14.0V
  • Reverse Battery Protection
  • Battery Transient Protection
  • 64MHz 16-bit Automotive Processor
  • x8 K-Type Thermocouple Inputs.
  • Operating Temperature Range: -30 to 85°C (-22 to 185°F)
